Expandable Bit

Auger Machine

We, SUNGWON Heavy Machinery, have been manufacturing and supplying
rock, soil drilling equipment and tools of DTH Hammers, Hammer Bits and
Auger Machines in Korea.

  • Auger Machine
  • ROD&BIT

SUNGWON Product

ROD&BIT

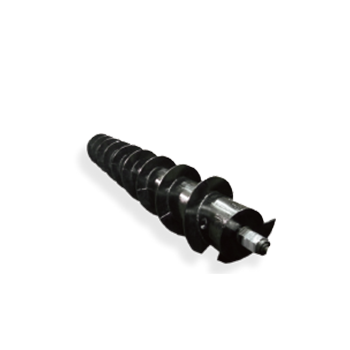

  • Screw Rod

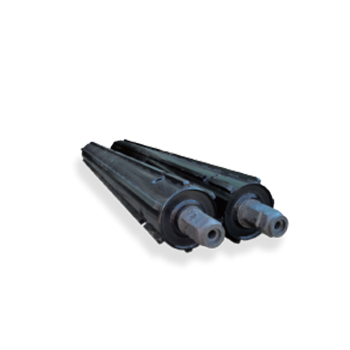

  • PRD Rod
Screw Rod PRD Rod
APPLICATION : For Screw Bit & Hammer
LENGTH : Max 9m
OUTER DIAMETER : ø300~ø1470

*Specification and image are subject to alteration without prior notice.

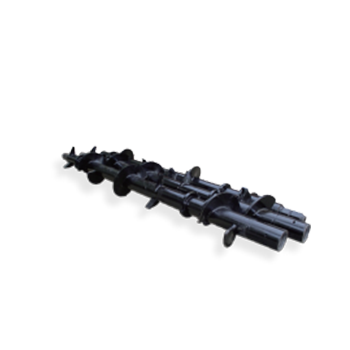

  • Mixing Rod-1

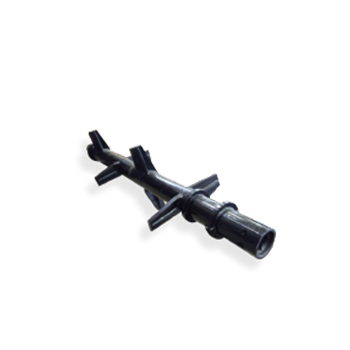

  • Mixing Rod-2
Mixing Rod-1 Mixing Rod-2
APPLICATION : for 3-Shaft APPLICATION : for 2-Shaft
LENGTH : 5m LENGTH : 4m
OUTER DIAMETER : ø300~ø800 OUTER DIAMETER : ø400~ø1500

*Specification and image are subject to alteration without prior notice.

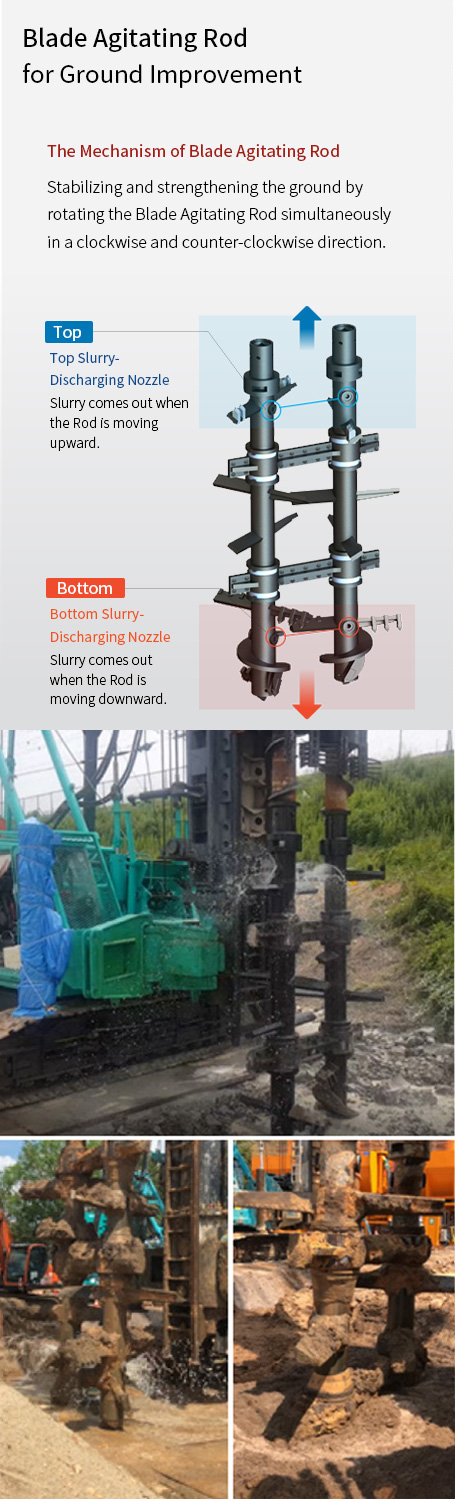

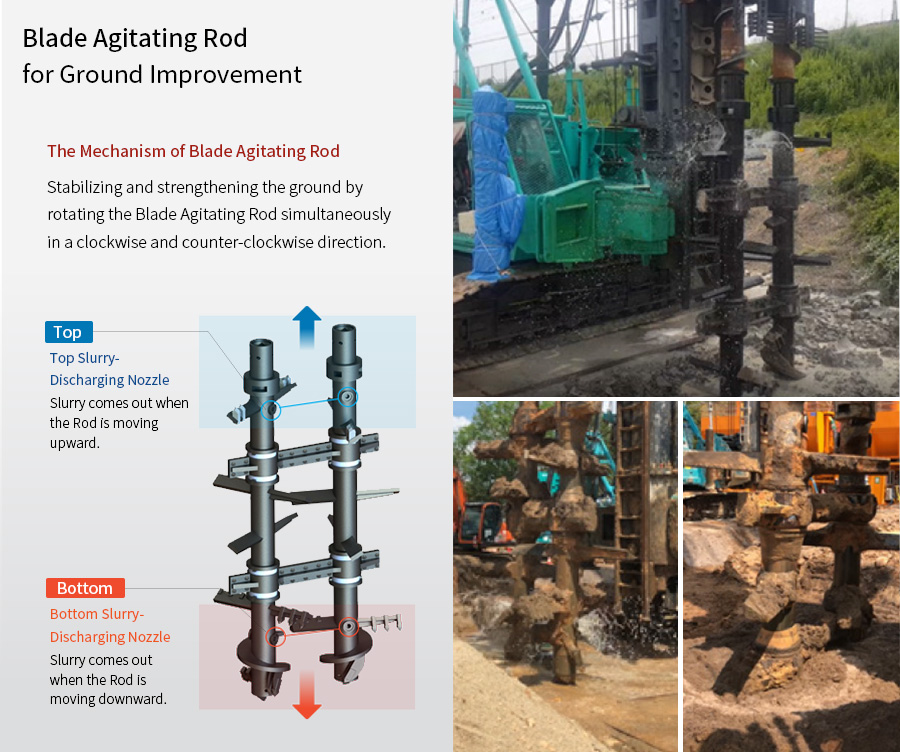

Features of Blade Agitating Rod
  • Efficient Structure & Role The discharging Exit for Slurry is installed at both Top & Bottom part of the Blade Agitating Rod. This multi-discharging outlet outperforms the general discharging mono Exit when mixing the soil and cement slurry.
  • Soil Mixing Technology The Rods with blade have functions of a soft soil stabilization which mixes soft soil in situ with cement slurry to produce soil-cement with higher strength.
  • Reduction in Construction Period (Time & Cost Saving) The discharging outlet at the Bottom plays a role of mixing the soil with Slurry when in operation downward. The other outlet at the Top functions in mixing the soil & cement slurry as well when in operation upward.
