Separate Auger
Auger Machine
We, SUNGWON Heavy Machinery, have been manufacturing and supplying
rock, soil drilling equipment and tools of DTH Hammers, Hammer Bits and
Auger Machines in Korea.
- Auger Machine
- Auger
SUNGWON Product
Auger
Auger Specification
Separate
Augers
For Casing operation

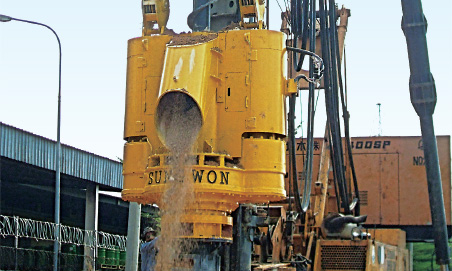

Separate Auger SPECIFICATION
| Specification |
|---|
| Motor |
| Rotation(rpm) |
| Rated Torque (kg-m) |
| Hole diameter |
| Auger Center to Guide Center(mm) |
| Power Supply |
| Weight(kg) |
| SW-120PW-SeA | SW-150PW-SeA1 | SW-150PW-SeA2 | SW-150PW-SeA3 | SW-200PW-SeA1 | SW-200PW-SeA2 | SW-200PW-SeA3 |
|---|---|---|---|---|---|---|
| 45Kw × 8P × 2 | 55Kw × 6P × 2 | 55Kw × 6P × 2 | 55Kw × 8P × 2 | 75Kw × 8P × 2 | 75Kw × 8P × 2 | 75Kw × 8P × 2 |
| 13 | 4.6 | 4.6 | 3.24 | 2.34 | 1.5 | 1.09 |
| 6,609 | 23,350 | 23,350 | 33,170 | 61,196 | 95,466 | 134,000 |
| ø600 | ø650 | ø690 | ø870 | ø1000 | ø1200 | ø1500 |
| 744 | 850 | 1,000 | 1,250 | |||
| AC 220V(380V) × 60Hz × 3P | ||||||
| 6,000 | 8,000 | 10,500 | 11,500 | 13,500 | 22,000 | |
