Hammer & BIT

We, SUNGWON Heavy Machinery, have been manufacturing and supplying rock,
soil drilling equipment and tools of DTH Hammers, Hammer Bits and Auger
Machines in Korea.

  • Hammer & BIT
  • Small & Medium-sized

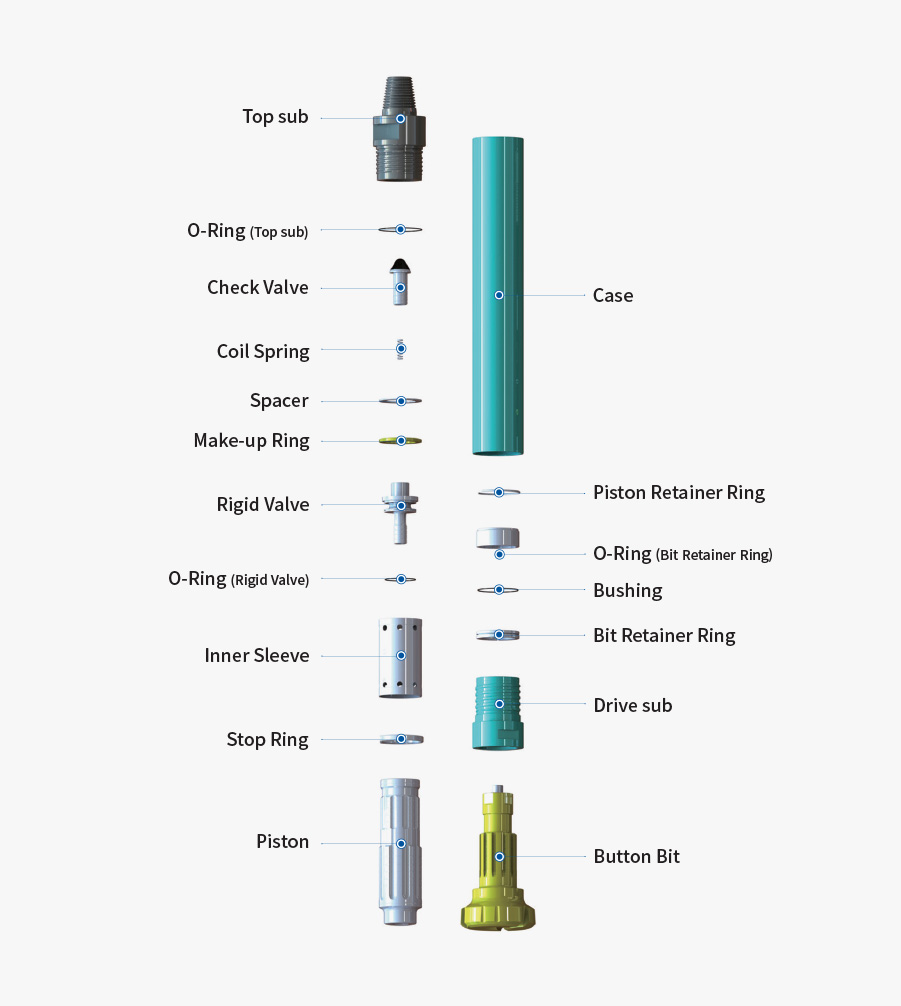

DTH Hammer Detail Specification

Small &

Medium-sized

8” DTH Hammer

SWH180D, SWH180Q, SWH180S

Hammer Model
Bit Shank
Type		 SUNGWON
Atlas
Sandvik
Numa

Bit Dia. mm
Hammer Dia. mm
Cylinder
Bore		 mm
Piston
Stroke		 mm
Piston
Weight		 Kgs
Length
(Less Bit)		 mm
Weight
(Less Bit)		 Kgs
Connection
Type
Air
Consumption
CFM(m3/min)		 100 psi 7.0
Kg/cm2
150 psi
10.5 Kg/cm2
200 psi
14.0 Kg/cm2
250 psi
17.6 Kg/cm2
300 psi
21.0 Kg/cm2
350 psi
24.1 Kg/cm2
SWH180D SWH180Q SWH180S
  QL80
DHD380
    SD8


195~270 195~270 195~270
185 185 185
150 150 150
100 100 100
50 50 50
1388 1370 1388
200 200 200
API 4 1/2 Reg.Pin API 4 1/2 Reg.Pin API 4 1/2 Reg.Pin

600(17.3) 510(14.4) 510(14.4)
830(23.5) 690(19.5) 690(19.5)
1070(30.3) 890(25.2) 890(25.2)
1315(37.2) 1090(30.9) 1090(30.9)
1315(37.2) 1090(30.9) 1090(30.9)
